  • Here's a quick overall sequence of the drag assembly less anti reverse, spring washers & shims. The overall drag sequence as shown in these photos are always the same, but the anti reverse, spring washers & shims can vary from reel to reel, so we opted to leave that out to avoid confusion! Take note at how clean all components are... Extremely Important!!!
  • Grab one of the three small hole drag washers & slid it down the drive gear shaft first...
  • ...and should look like this!
  • Now, slide on your drive gear...
  • ... then install the carbon fiber drag washer with the largest center hole. This is specially cut to fit inside the drive gear to clear the bronze bushing & is always the first of the three larger carbon fiber drag washers that are to be installed.
  • This is the first of the "keyed" metal drag plates that originally came with your reel, taking note that there are two different styles. This will be the thinner or flattest of the two, using the "concave" or "cymbal" shaped plate for the very top "keyed" drag plate and should look like this!
  • Now install the second small hole carbon fiber drag washer...
  • ... followed by the metal "eared" plate and should look like this!
  • Now install the third small hole carbon fiber drag washer followed by the second of the two metal "keyed" drag plates. Remember, this will be the "cymbal" style of the two & always is on the top of the stack if this applies to your reel. Some models had two flat plates.
  • It should look like this when your all done. Now just add your anti reverse, spring washers, shims, & reassemble in your side cover!

CARBON FIBER DRAG WASHER SET BY DRAGMASTERS FOR MAG SYSTEM MS-25CS, 25LS, 30CS, 30LS, 45CS, & 45LS TROLLING REELS

$13.77
SKU:
CV45CFD-MAGSYS
Current Stock:
97
Quantity:

Product Description

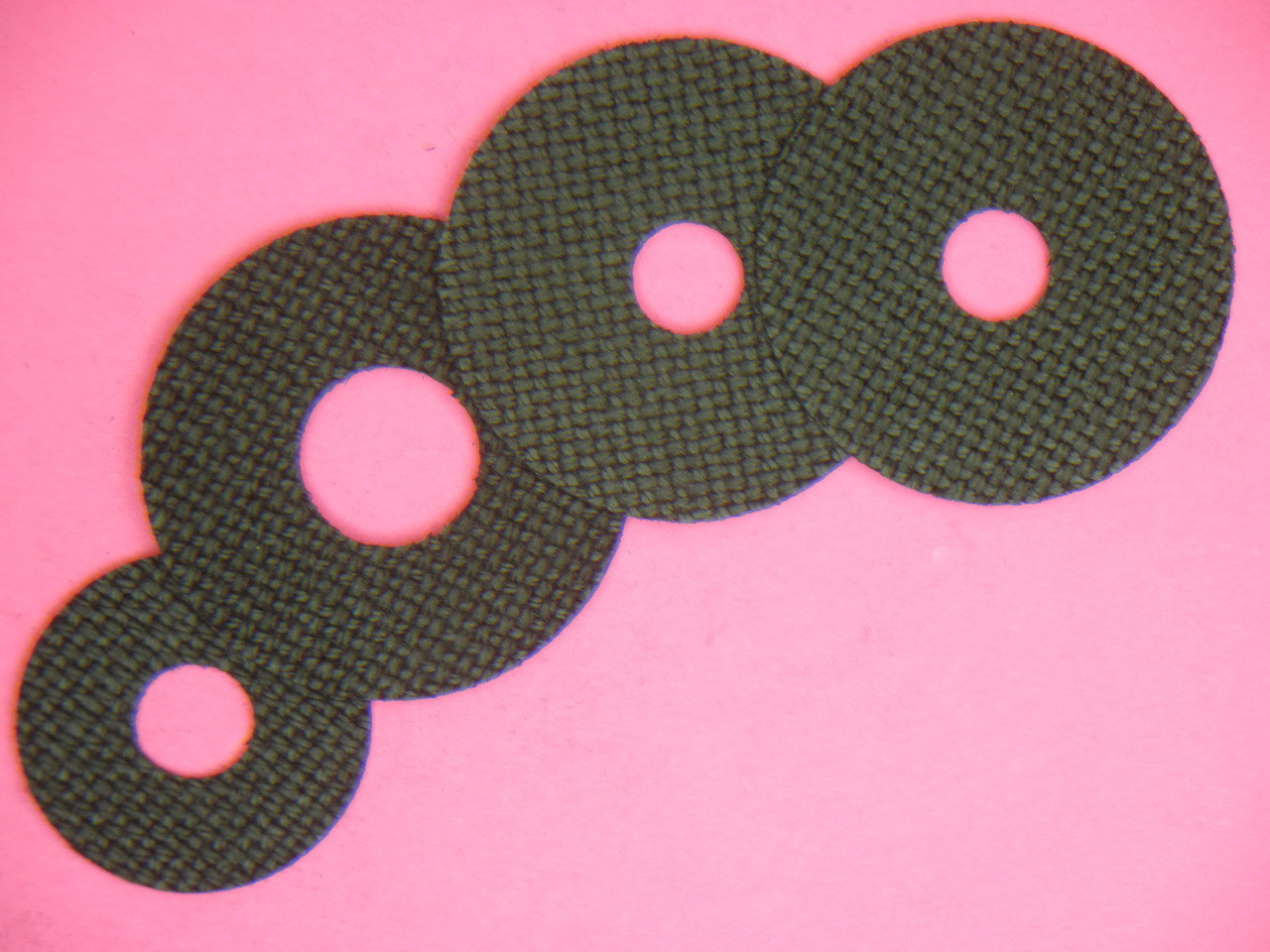

OKUMA MAG SYSTEM MS-25CS, 25LS, 30CS, 30LS, 45CS, & 45LS CARBON FIBER DRAG WASHER SET BY DRAGMASTERS

Drastically increase the performance potential of any Okuma Mag System series reel in only minutes by adding a new set of DRAGMASTERS  Tournament Series carbon fiber drag washers without the aid of any special tools!

This complete set of four DRAGMASTERS  Tournament Series carbon fiber drag washers are compatible with all popular brands of drag grease but have proved without a doubt, to be untouchable in the Great Lakes Region when run dry!

It is however, highly recommended to use your favorite drag grease when used in any saltwater or brackish environment.

This is a complete set of four DRAGMASTERS  Tournament Series carbon fiber drag washers that will retrofit & undoubtedly upgrade any Okuma Mag System MS-25CS, 25LS, 30CS, 30LS, 45CS, & 45LS Star Drag Trolling Reel!
