Here's what you get!
  • Here's what you get!
  • Here's a quick overall sequence of the drag assembly less anti reverse, spring washers & shims. The overall drag sequence as shown in these photos are always the same, but the anti reverse, spring washers & shims can vary from reel to reel, so we opted to leave that out to avoid confusion! Take note at how clean all components are... Extremely Important!!!
  • The smallest drag washer of the set always goes on first under the drive gear...
  • ...and should look like this!
  • Now, slide on your drive gear...
  • ... then install the carbon fiber drag washer with the largest center hole. This is specially cut to fit inside the drive gear to clear the bronze bushing & is always the first of the three larger carbon fiber drag washers that are to be installed.
  • This is the first of the "keyed" metal drag plates that originally came with your reel, taking note that there are two different styles. This will be the thinner or flattest of the two, using the "concave" or "cymbal" shaped plate for the very top "keyed" drag plate and should look like this!
  • Now install the first of the two larger small hole carbon fiber drag washers...
  • ... followed by the metal "eared" plate and should look like this!
  • Now install the second of the two larger small hole carbon fiber drag washers followed by the second of the two metal "keyed" drag plates. Remember, this will be the "cymbal" style of the two & always is on the top of the stack!
  • It should look like this when your all done. Now just add your anti reverse, spring washers, shims, & reassemble in your side cover!

CARBON FIBER DRAG WASHER SET BY DRAGMASTERS FOR OKUMA CN-55 SERIES TROLLING REELS

$15.89
SKU:
CV55CFDA
Current Stock:
86
Quantity:

Product Description

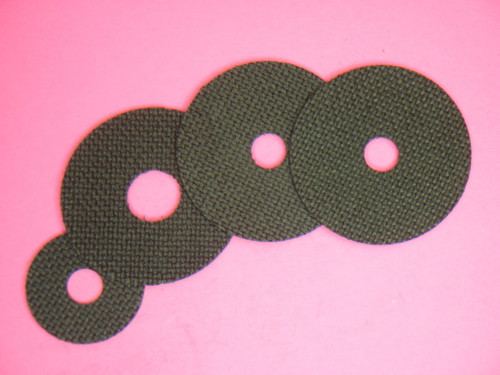

OKUMA CONVECTOR CN-55 SERIES CARBON FIBER DRAG WASHER SET BY DRAGMASTERS

Drastically increase the performance potential of any Okuma Convector CN-55 series reel in only minutes by adding a new set of DRAGMASTERS   Tournament Series carbon fiber drag washers without the aid of any special tools!

This complete set of four DRAGMASTERS   Tournament Series carbon fiber drag washers are compatible with all popular brands of drag grease but have proved without a doubt, to be untouchable in the Great Lakes Region when run dry!

It is however, highly recommended to use your favorite drag grease when used in any saltwater or brackish environment.

This is a complete set of four DRAGMASTERS   Tournament Series carbon fiber drag washers that will retrofit & undoubtedly upgrade any Okuma Convector CN-55, 55L, 55S, 55SS, & CN-55W Star Drag Trolling Reel!
