OKUMA 15000238, 15000242, 15000248, 15000256, 15000278, & 15000288 "ERGO GRIP®" POWER HANDLE ASSEMBLY FOR CATALINA & CONVECTOR 15 & 20 SERIES TROLLING REELS

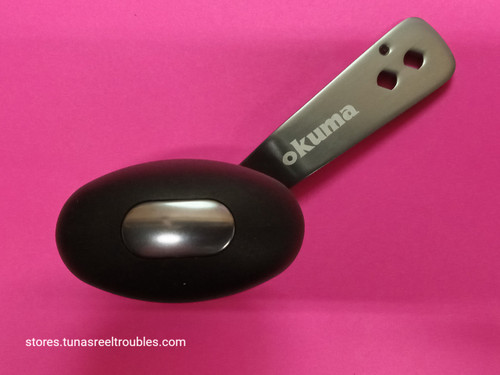

OKUMA 15000238, 15000242, 15000248, 15000256, 15000278, & 15000288 "Ergo Grip®" POWER HANDLE
*Handle numbers 15000238, 15000242, 15000248, 15000256, 15000278, 15000288, 1150002404005A, 1150002404006D, & 1150000604006D are all the same part that were just assigned a different production number.
Even though this Handle Assembly was originally intended for use exclusively on the smaller Okuma Convector & Catalina 15 & 20 series reels, this handle will make an awesome upgrade with its two position mounting location & it's larger "Ergo Grip®" handle knob for virtually any Okuma Star Drag Trolling Reel... See for yourself & check out the list of reels it fits below!
The "Ergo Grip®" handle knob is an extremely comfortable oversized handle-knob design for both speed and power. This soft-touch knob has been ergonomically designed to fit in the palm of your hand and will be found on certain Okuma lever drag reels, star drag reels and some spinning reel models.
This Power Handle measures 3 3/16" (@3.187" or 81mm) from the center of the mounting hole for the longest throw to the center of the "Ergo Grip®" handle grip axle that will fit any Okuma reel that has a Drive Gear Shaft dimension of @ .243" x .195" (@ 1 1/4" x 3/16" or @ 6mm x 4.85mm) where the handle actually resides once in place. The actual dimension of the mounting hole is .250" x .205" or 6.85mm x 4.90mm.
CATALINA CT-15C, 15D, 15L, 20C, 20D, & 20L
CONVECTOR CV-15C, 15CS, 15D, 15L, 20C, 20CS, 20D, 20DLX, & 20L
MAG SYSTEM MS-15CS, 15LS, 20CS, & 20LS
STRATAMASTER SM-15D & 20D
